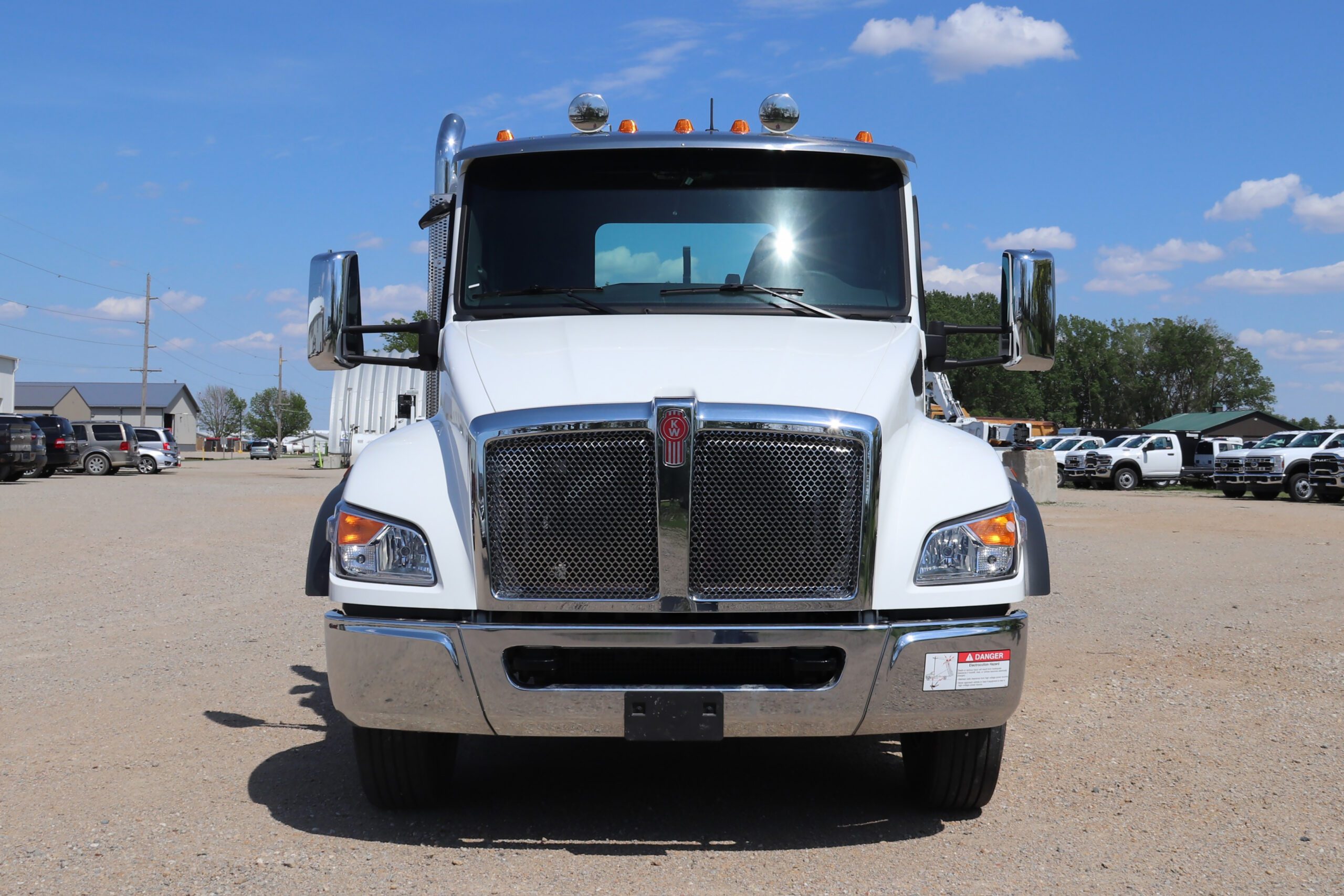

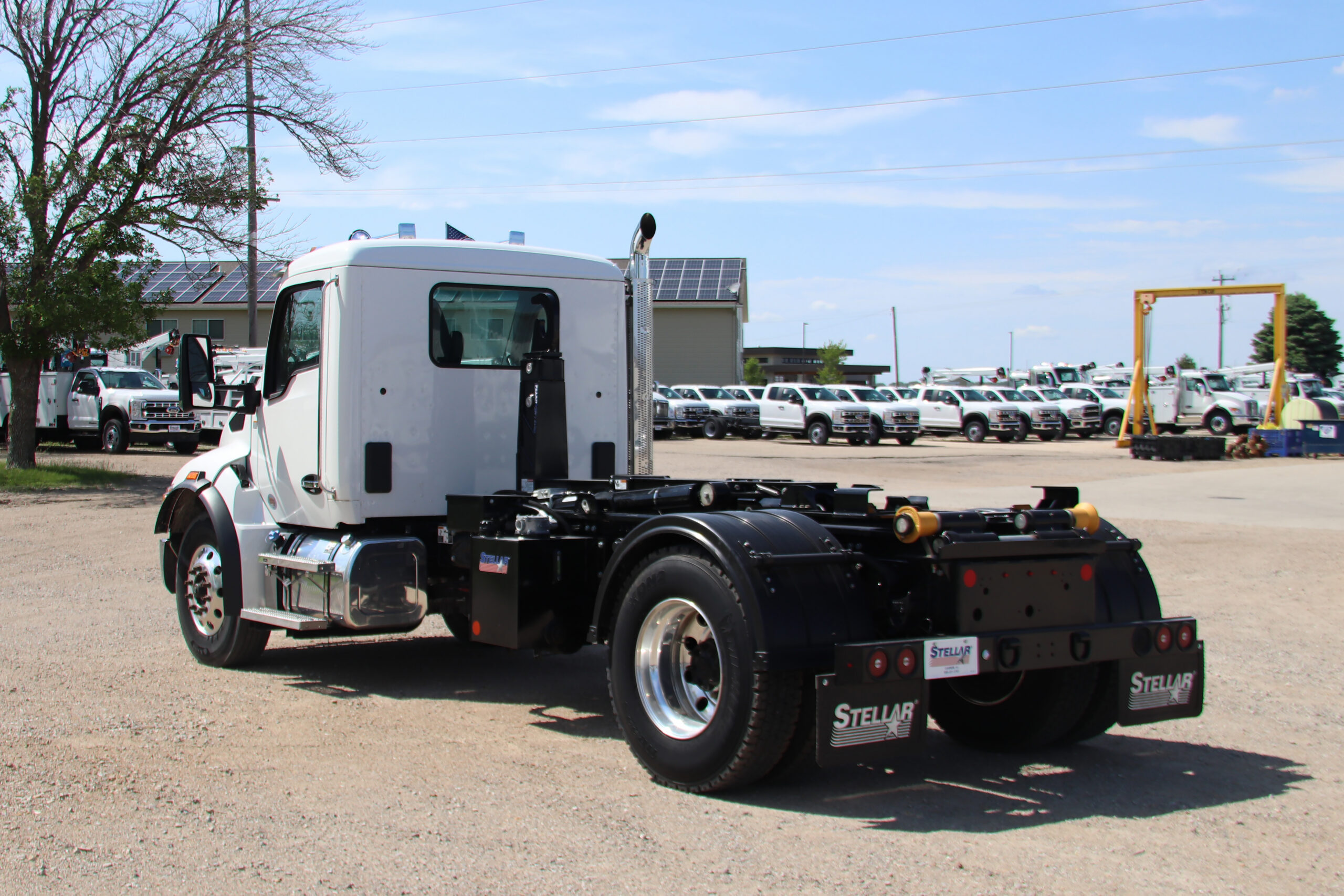

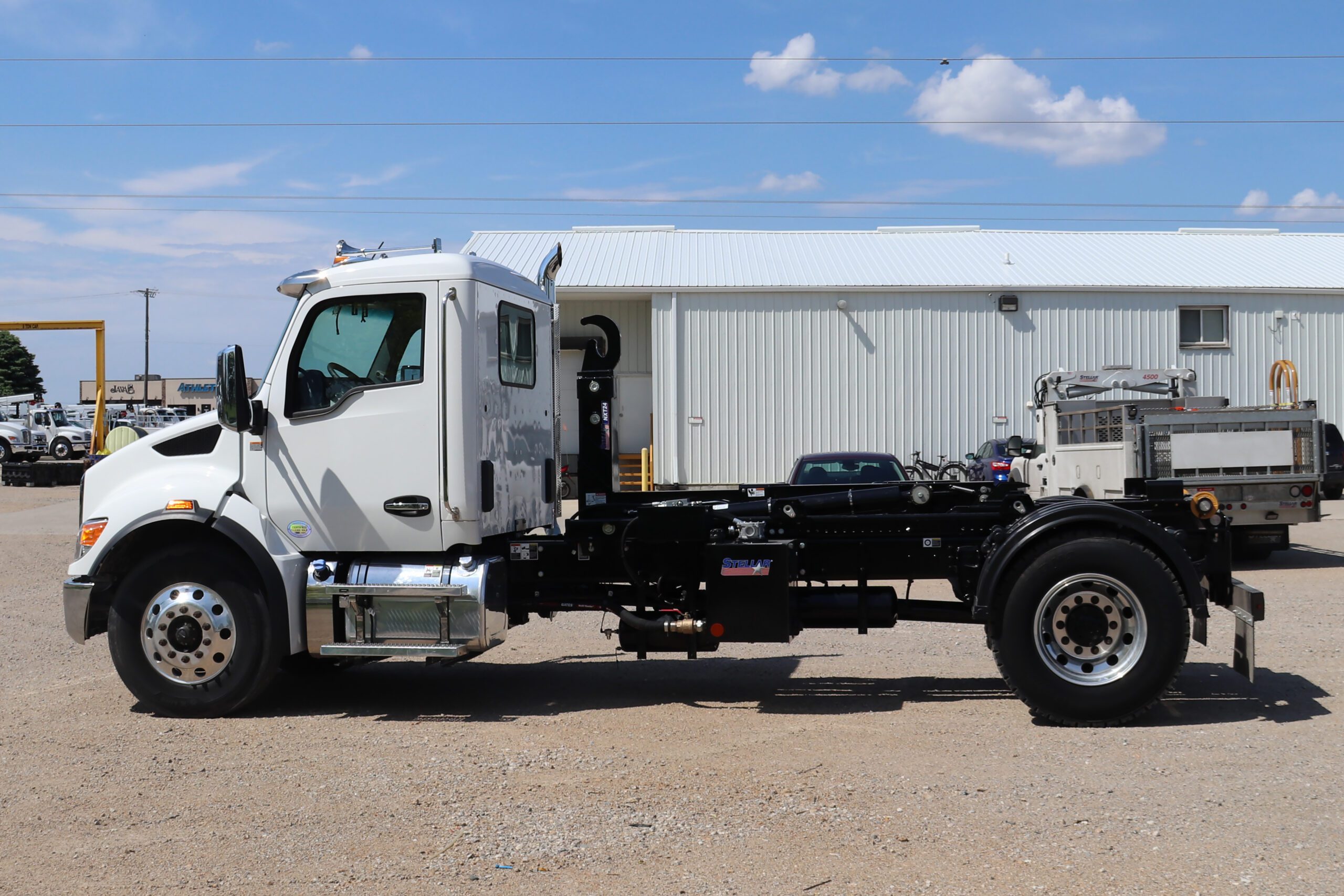

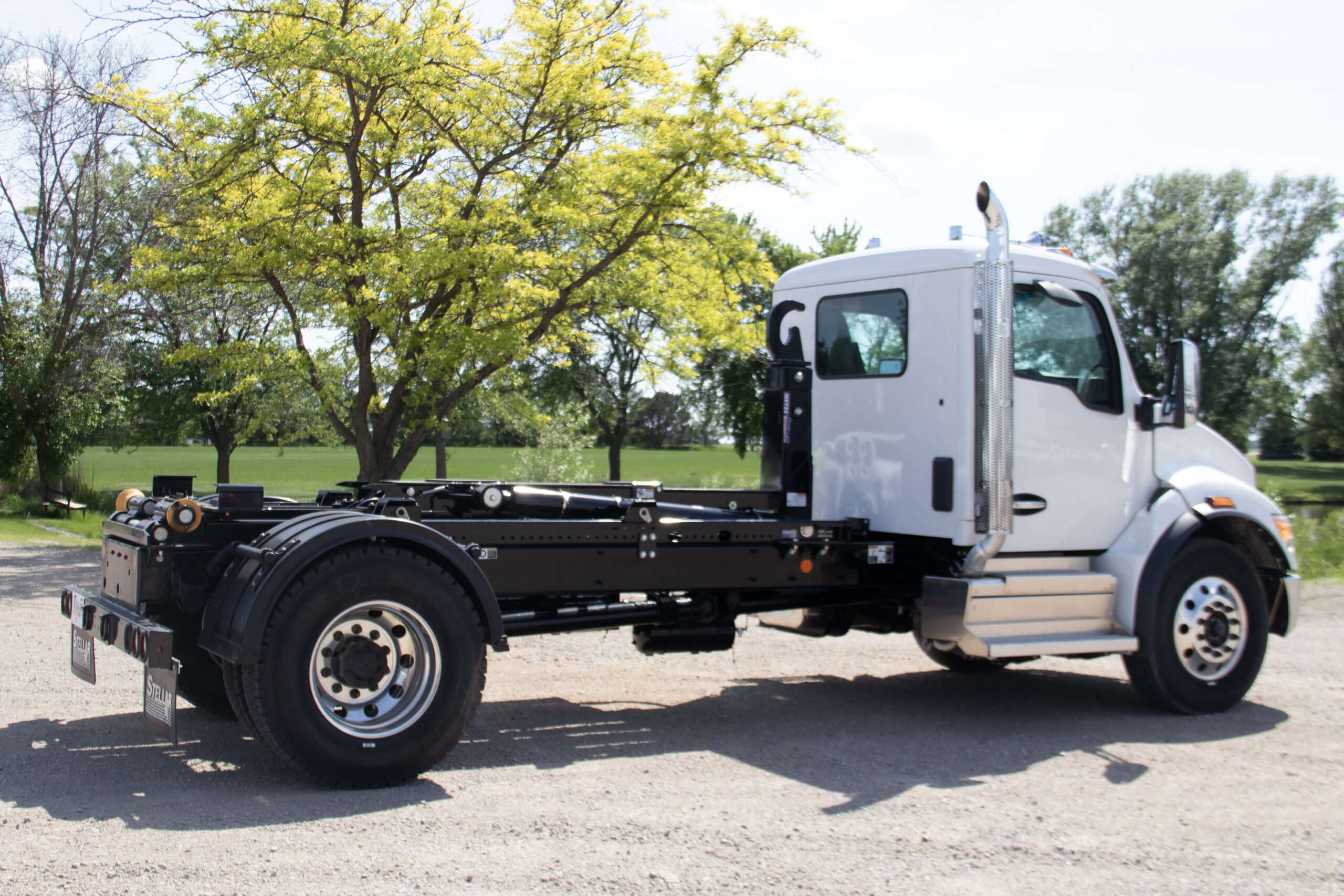

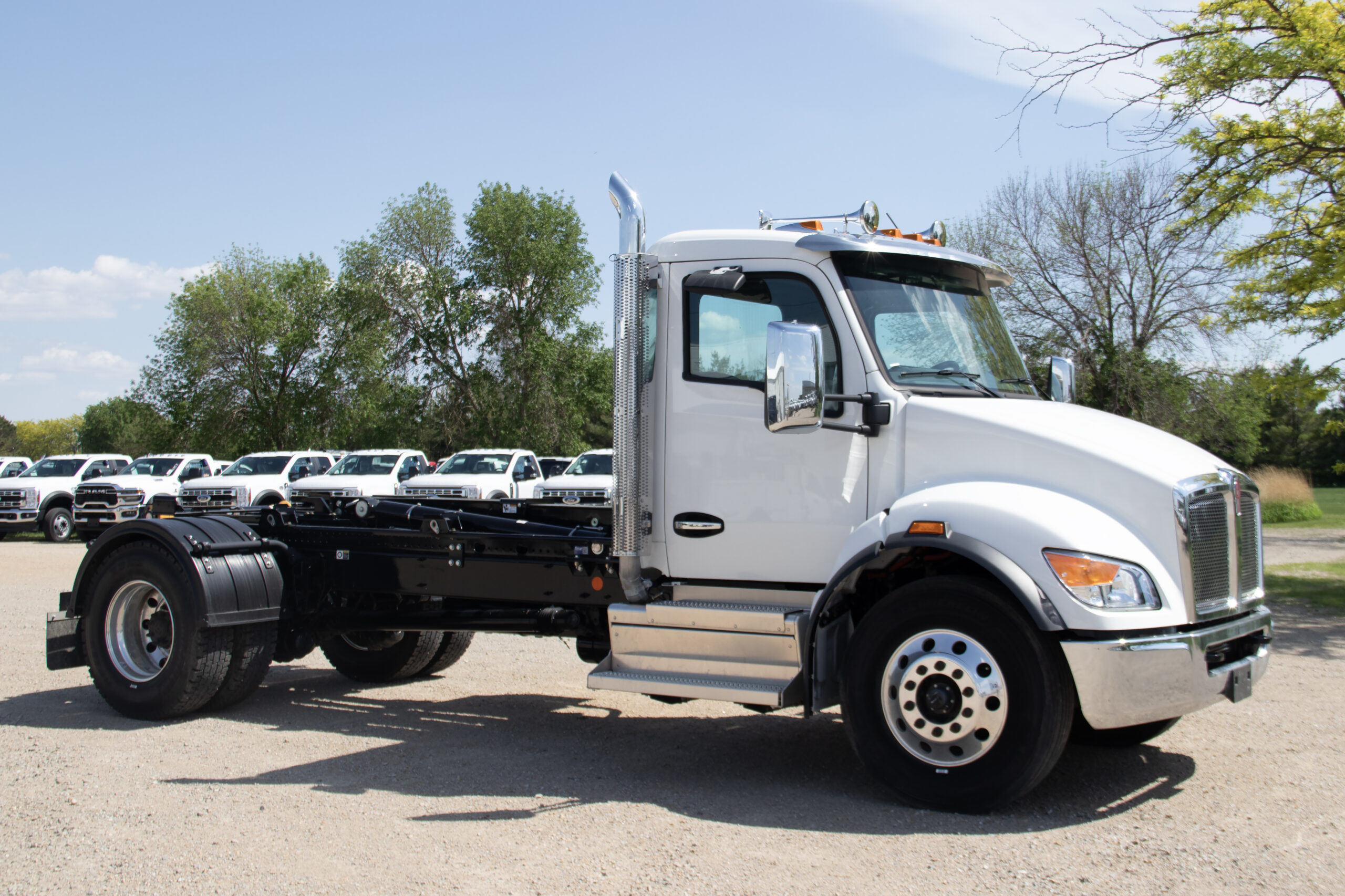

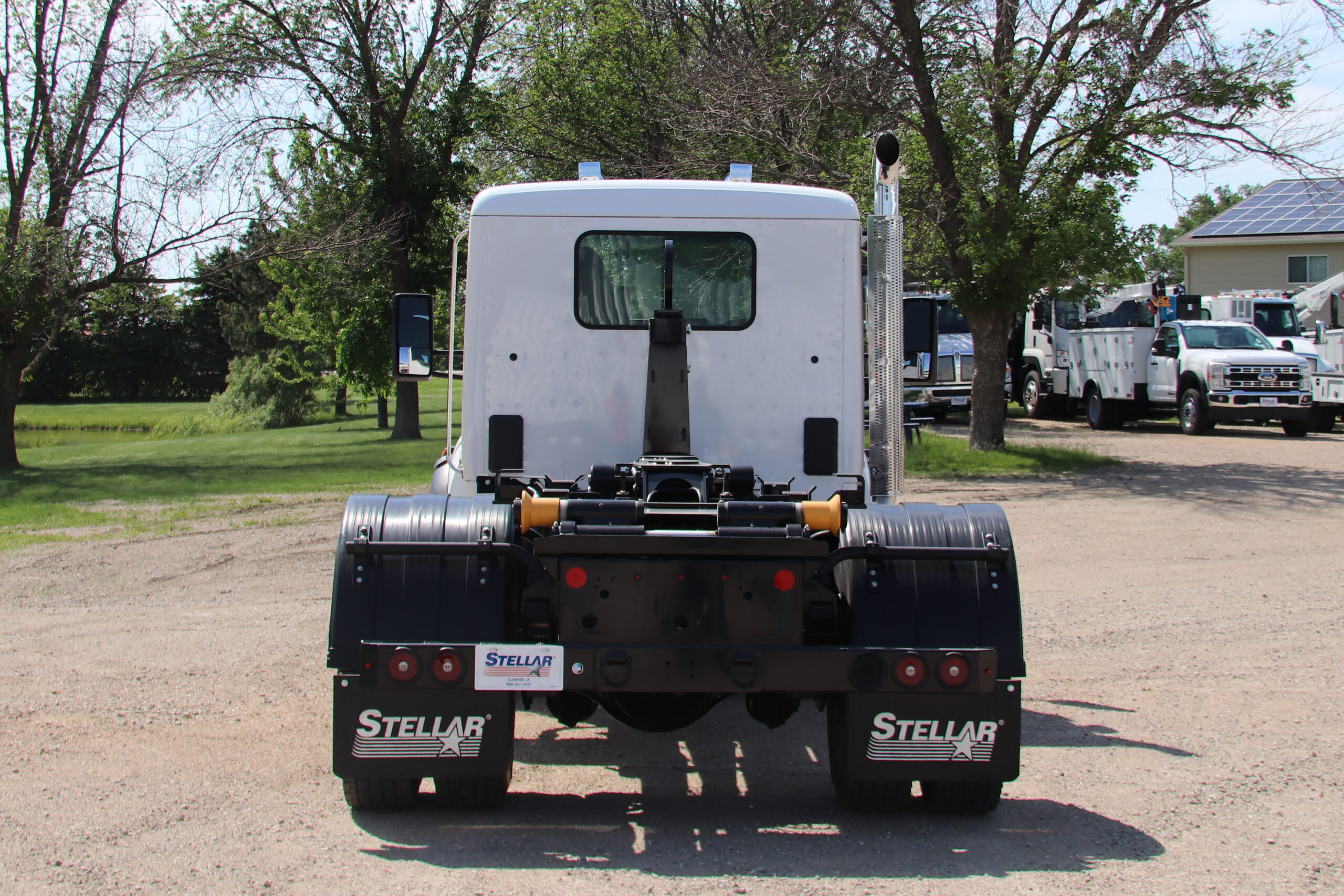

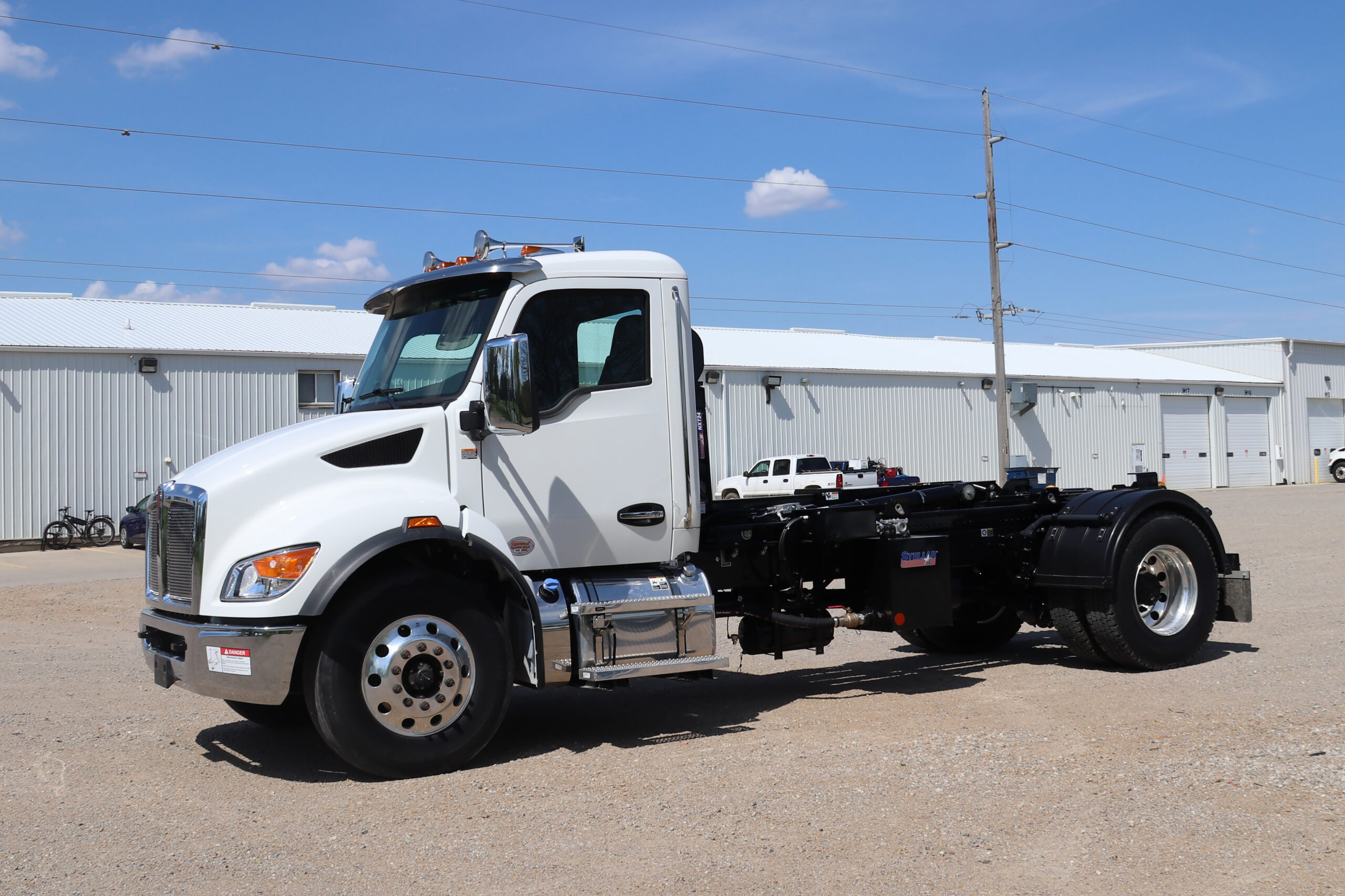

2025 Kenworth T280 w/ NXT24S (WR195)

2025 Kenworth T280

• 132″ CA/200″ WB
• 26,000# GVW
• Paccar PX-7 300 HP Diesel
• Allison 3000
• 10,000# Front Axle
• 21,000# Rear Axle
• Horiz. Exhaust With Vertical Pipe
• Air Brakes
• 56-Gallon LH Fuel Tank
• 11R22.5 Tires
• Air Cond.
• Air Cushion Driver’s Seat

Hooklift

• Stellar NXT24S Double Pivot
• 30,000 lb Capacity Hooklift Hoist With Z-Rail Base
• Telescopic Jib
• Manual Adjustable 35 5/8″/54” Hook Height
• Dump Designed To Accept Bolt-On Latches
• Single Rear Rollers And 63° dump Angle
• Includes:(4) Roller Style Body Saddles And 25-Gallon Hydraulic Reservoir
• Designed For 10’ To 14’ Container Body Lengths
• Shortest Container Body Length For Dumping Is 10’,
• Longest Flatbed body (w/Fold Down Bumper) Is 16′ (Dump angle is restricted due to body length)
• Maximum 24 GPM Hydraulic Flow With Hydraulic Operating Pressure Of 4,500 PSI

Includes:

• 141807 JIB ASM NXT24/30S 36/54HH
  141805 SECONDARY ASM NXT24/30S
  141803 DUMP ASM NXT24/30S
  141801 BASE ASM NXT24/30S
  140048 MNT KIT NXT24/30
  130144 RSRVR ASM 25GAL SQUARE
• Inside Body Locks – Bolt On (2 Per Kit)
• Outside Pass Thru Body Lock – Bolt On
• Standard Zinc Pins
• Standard Black Paint

Hydraulics

• 2-Function Air Control
• Includes: 2-Function Air Tower
• 2-Section Valve Bank Assembly
• Valve Bank Mounting And Hoist Up Indicator Light
• Hot Shift PTO For Various Chassis With Allison 3000 Transmission
• 129%
• 7/8″-13T Spline Shaft
• Hydraulic Direct Mount Bent Axial Piston Pump
• 3.84 CID With 7/8″-13T Spline Shaft
• Bi-Rotational
• Includes Hydraulic Fitting Kit

Accessories

• 16,000lb Pintle Hitch Bumper Assembly
• Includes FMVSS108 Compliant Light Kit
• Backup Alarm
• One Pair Poly Fenders
• Includes Fender Brackets – Factory Installed
• Stellar Mud Flap Kit – Factory Installed
