Additional Information
- Space-Saving Design. Engineered to occupy minimum bed space while providing a high load-lifting radius.
- Proportional Radio Remote. Works with the CDT™ Radio Remote Control System for safe, convenient operation away from the load.
- Certified. Meets ANSI B30.5 and OSHA 1910.180 specifications.
Specifications

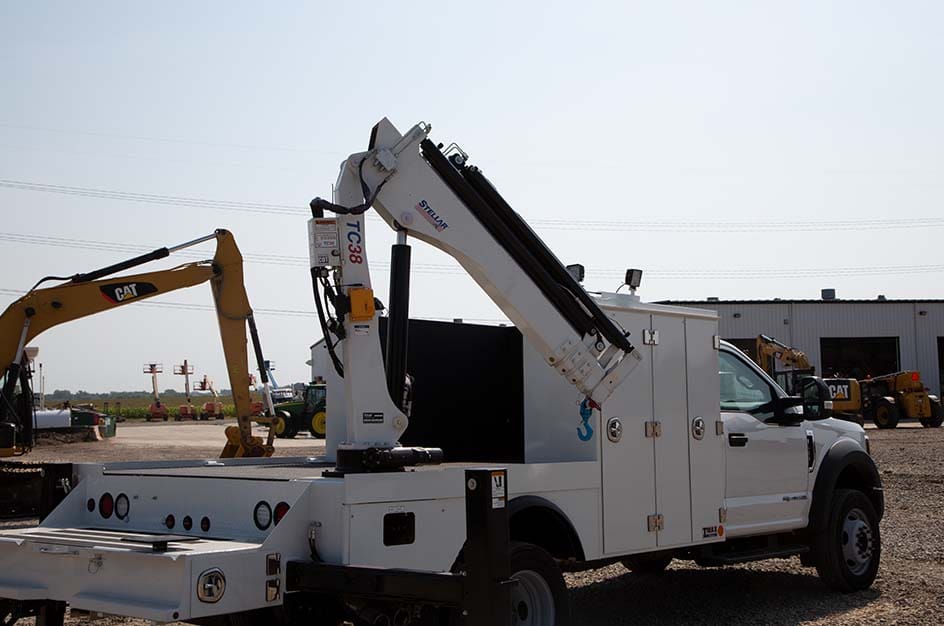

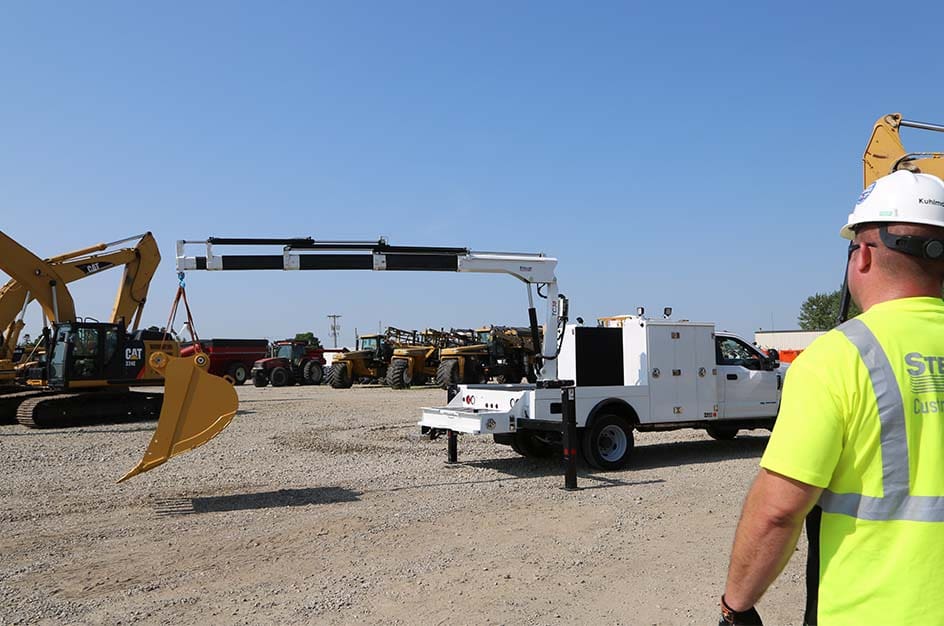

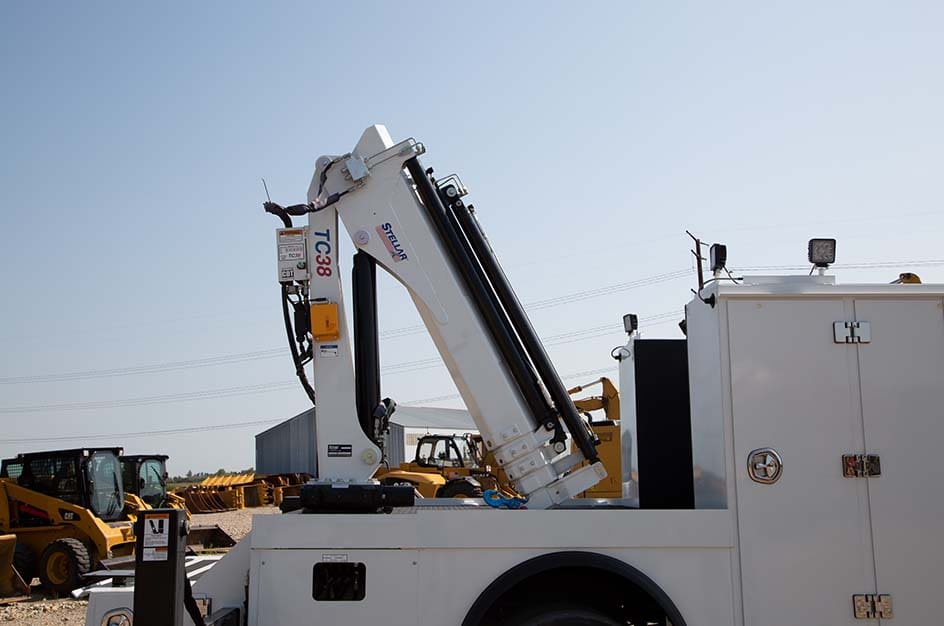

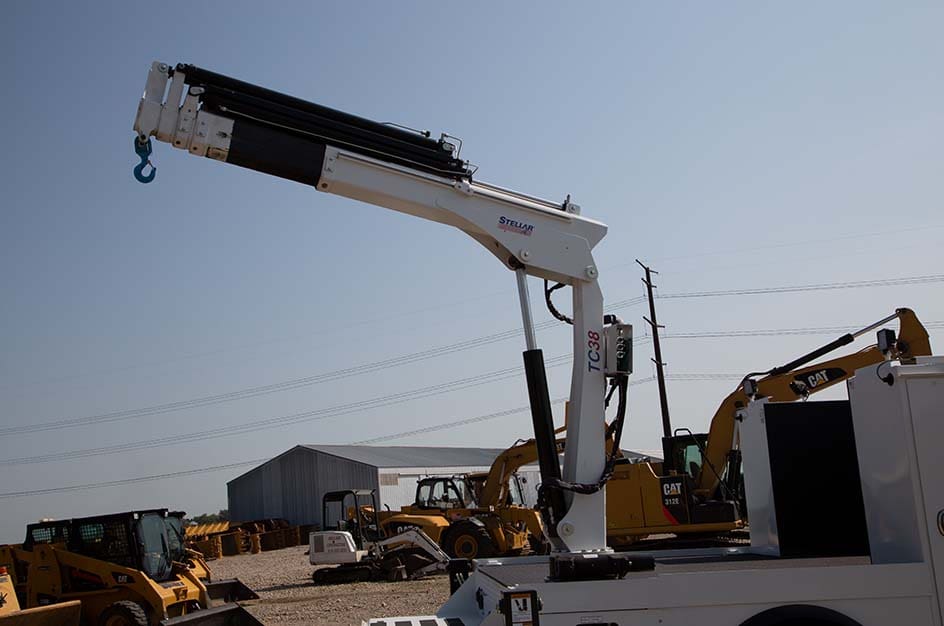

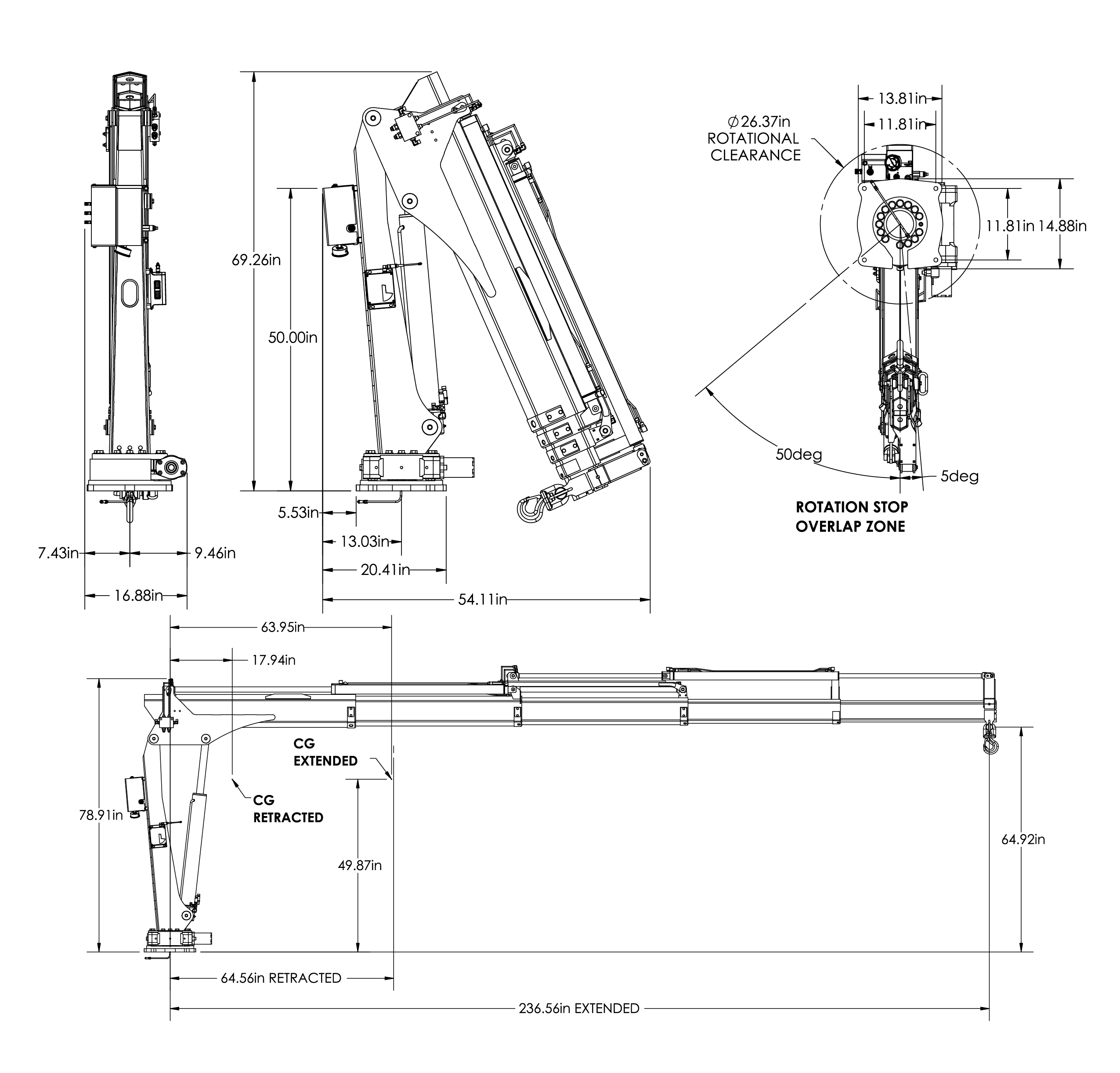

| TC38 | |
| Crane Rating: | 26,660 ft-lb |
| Max Lifting Capacity: | 4,940 lbs (2,241 kg) |
| Maximum Horizontal Reach: | 19.7' (6 m) |
| Crane Rotation: | 410° |
| Operating Pressure: | 2,750 psi |
| Pump Capacity: | 2.5 gal/min (9.5 l/min) |
| Weight: | 1,010 lbs (458 kg) |
| Min. Rec. Chassis (GVWR)*: | 14,500 |

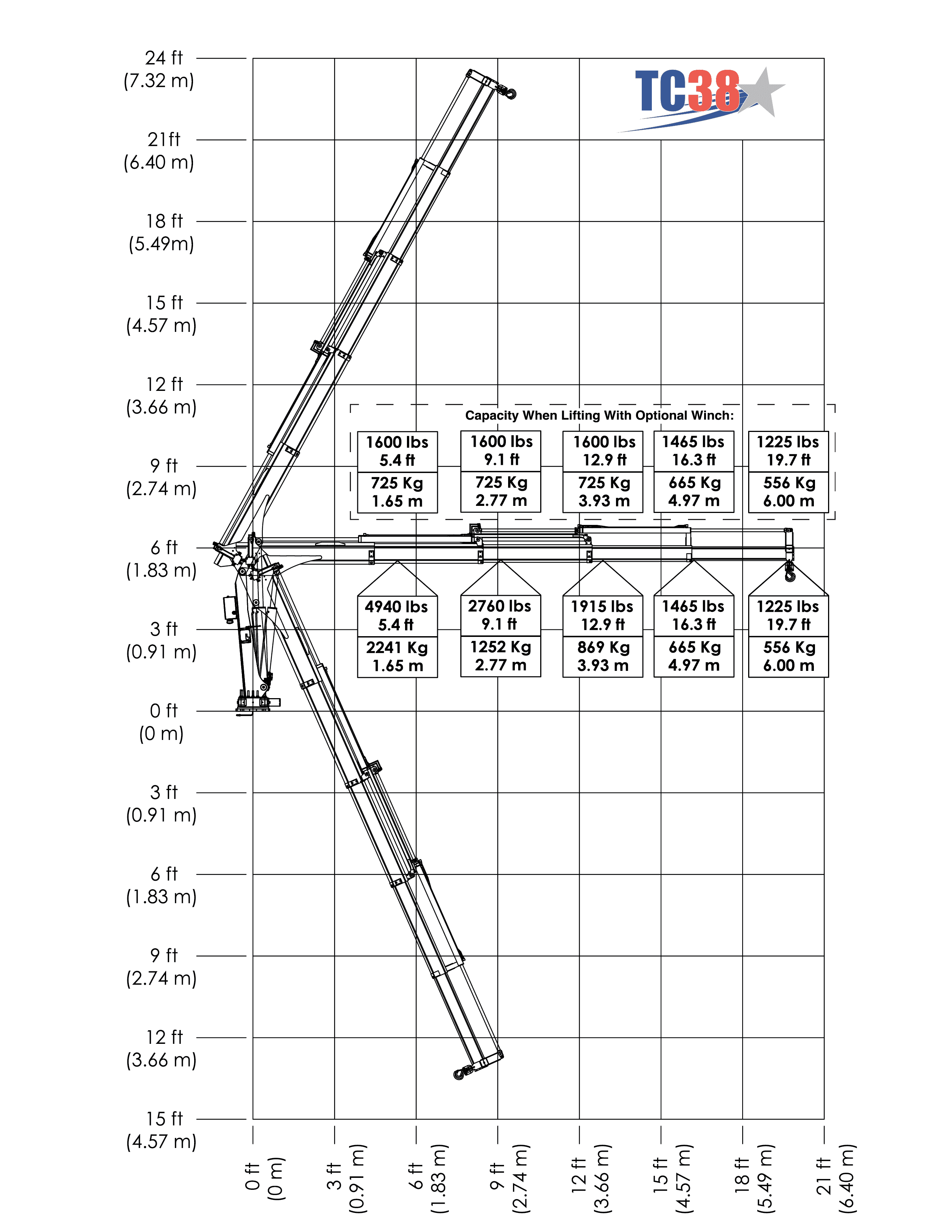

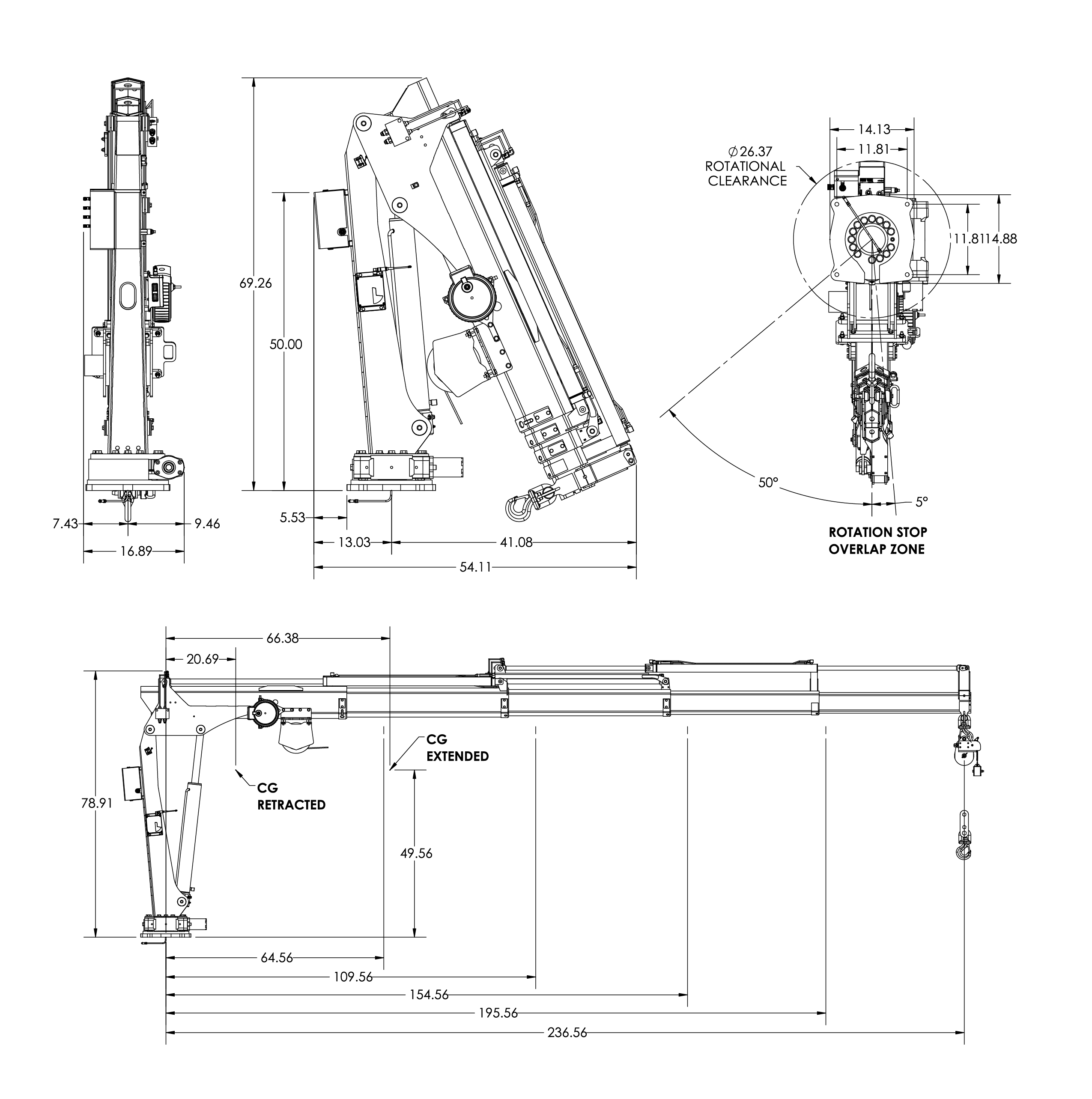

| TC38 with Winch | |
| Crane Rating: | 26,660 ft-lb |
| Max Lifting Capacity: | 1,600 lbs (725 kg) |
| Maximum Horizontal Reach: | 19.7' (6 m) |
| Crane Rotation: | 410° |
| Operating Pressure: | 2,750 psi |
| Pump Capacity: | 2.5 gal/min (9.5 l/min) |
| Weight: | 1,150 lbs (522 kg) |
| Min. Rec. Chassis (GVWR)*: | 14,500 |
Optimize your Service vehicle
Because different people use service vehicles in different ways, Stellar makes it easy to outfit yours with a wide range of accessories.
